Animal intestine clean machine
Animal intestines washing machine is used for cleaning duck intestines, chicken intestines, goose intestines, pig intestines, beef intestines, beef maw, lamb maw, etc. The equipment is used to clean intestines and tripe by rotating and beating the drum. Inside the drum, there is a turnover plate and a mixing column, which can continuously turn the intestines and stomachs. Through the rotation of the drum, manual kneading and cleaning are simulated. The equipment structure consists of roller, splash proof outer shield, frame, transmission system, cleaning system, sewage collection and drainage system and control system.
Working principle of Animal intestine clean machine
Put the animal’s intestines to be cleaned into the roller. The roller is equipped with a high-pressure spray device. At the same time, the wall of the roller is also equipped with drain holes and anti-skid devices. The stainless steel high-pressure water pump is used to pump water into the horizontal roller for cleaning. Vortex is generated through the rotating roller to clean the duck intestines in the roller. The sewage is discharged out of the roller and flows into the sewage collection tank.
Feature of Animal intestine clean machine
1. The machine is made of SUS304 stainless steel, with simple structure and convenient operation.
2. The method of alternate use of normal temperature water and hot alkaline water is adopted for cleaning, which is suitable for the cleaning of intestines and stomachs of pigs, cattle, sheep, ducks and other animals.
3. It can be customized according to the actual needs of users. The equipment has low noise, rotary drum and water outlet function.
4. The whole machine is welded by the frame, and the barrel is drilled to ensure the timely discharge of impurities during cleaning.
5. Each side of the product is equipped with a high-pressure nozzle, which is thoroughly cleaned.
6. The water inside the product can be recycled automatically, which can effectively save water.
technical parameter of ANIMAL INTESTINE CLEAN MACHINE
Model | 1000 | 1500 |
Size | 1000*600*900mm | 1500*800*1200mm |
Power | 0.75kw | 1.5kw |
Material | 304 stainless steel | 304 stainless steel |
Production capacity | 100-150kg/h | 200-300kg/h |
Washing time each time | 8 minutes | 8 minutes |

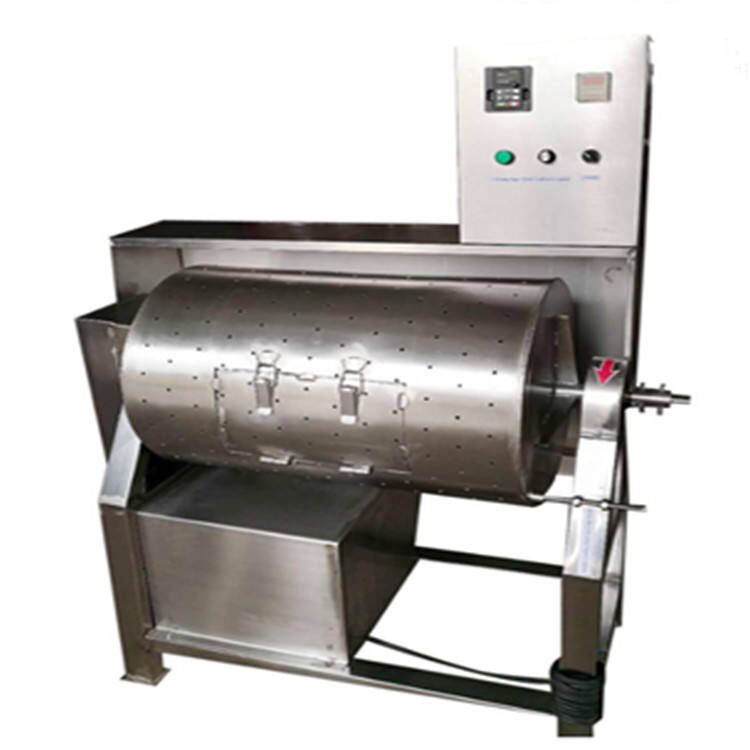

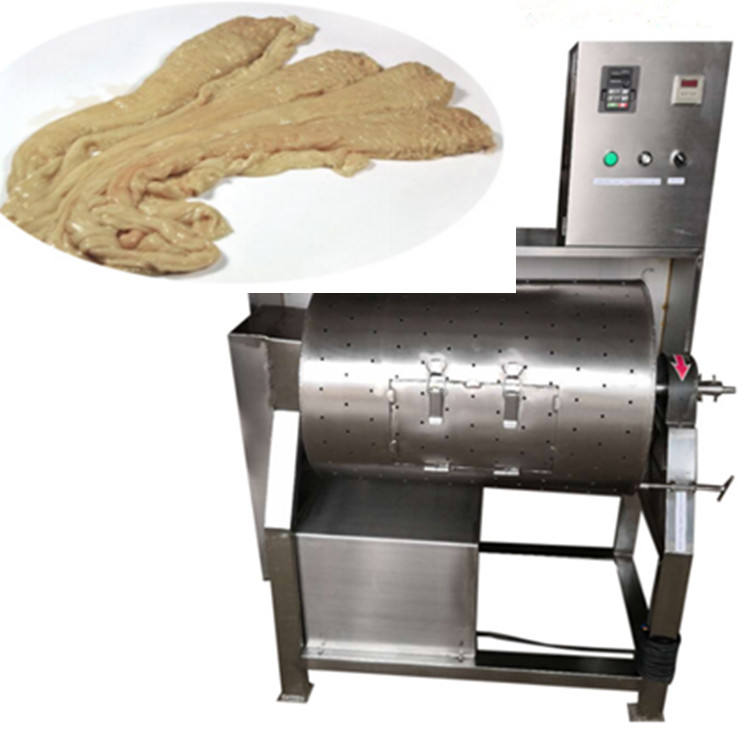

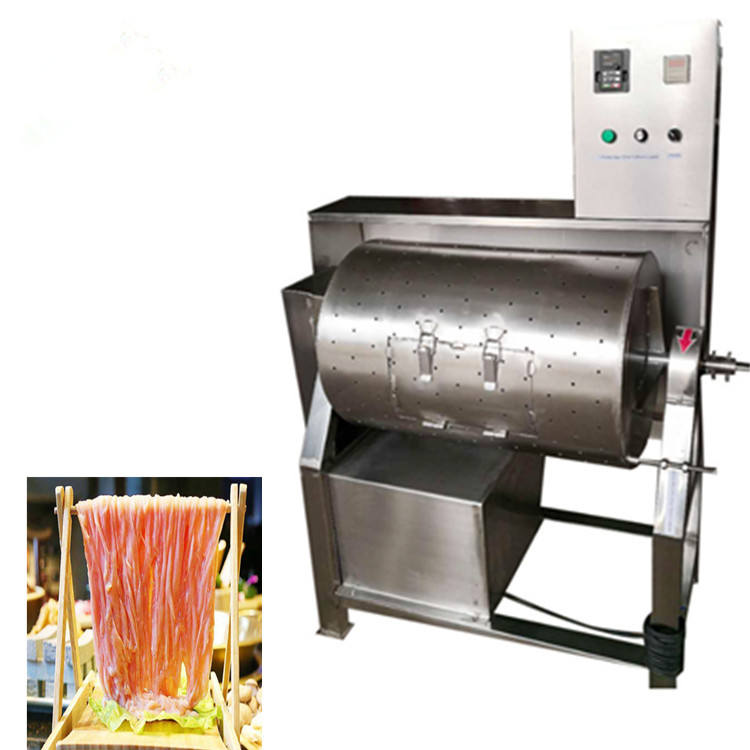

Photos of ANIMAL INTESTINE CLEAN MACHINE
