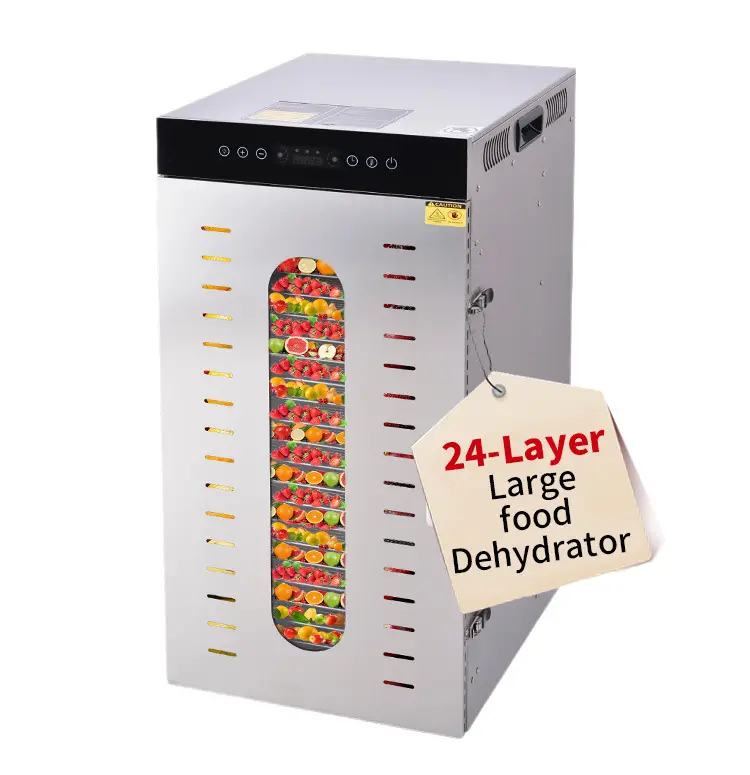

24-Tray Commercial Food Dehydrator FD-24B | Stainless Steel Fruit & Meat Drying Machine
The FD-24B Commercial Food Dehydrator is a high-capacity, heavy-duty drying solution engineered for commercial kitchens, small food processing businesses, farms, and pet treat production. Built with full food-grade stainless steel, this 24-layer unit combines a powerful 2000W heating system with 3 internal fan motors to deliver fast, uniform, and energy-efficient dehydration.
Featuring a generous 80L internal volume capable of holding 40-60kg per batch, the FD-24B is ideal for processing dried fruit chips, vegetable crisps, beef jerky, pet treats, floral teas, and medicinal herbs with precise touch-panel microcomputer control.
Key Features & Advantages
- 24-Layer Large Capacity (80L Volume): Holds up to 40–60 kg of raw ingredients across 24 spacious stainless steel trays, maximizing daily output.
- 3 Rear Fan Motors & 2000W Heating: Ensures 360° horizontal air circulation across all trays, eliminating the need to manually rotate trays during drying.
- Full Stainless Steel Construction: Premium food-grade stainless steel body and mesh trays ensure maximum hygiene, corrosion resistance, and effortless cleaning.
- Digital Control & Wide Temp Range (30°C–90°C): Precise touch controls allow customizable timer and temperature settings tailored for delicate herbs or thick-cut meats.
- Visual Tempered Glass Door: Front observation window lets operators monitor drying progress in real-time without releasing heat.
- Global Power Compatibility: Available in 110V, 220V, and 240V configurations with customizable plug types for worldwide export.
Technical Specifications (FD-24B)
| Parameter | Specification |
|---|---|
| Item No. / Model | FD-24B |
| Material Type | Full Food-Grade Stainless Steel |
| Tray Capacity | 24 Layers (Trays) |
| Internal Volume | 0.08 m³ (80 Liters) |
| Yield / Capacity Output | 40 – 60 kg per batch |
| Fan Motor Quantity | 3 pcs Heavy-Duty Air Circulation Fans |
| Heating Power | 2000W |
| Voltage Options | 110V / 220V / 240V (50/60Hz) |
| Temperature Range | 30°C – 90°C (Adjustable) |
| Tray Size | 28.5 cm × 38.5 cm |
| Tray Spacing / Distance | 3 cm |
| Product Dimensions (W×D×H) | 405 mm × 460 mm × 810 mm |
| Package Dimensions (W×D×H) | 460 mm × 510 mm × 870 mm |
| Net / Gross Weight | 18.75 kg (N.W.) / 20.45 kg (G.W.) |
| Shipping Volume | 0.21 CBM |
Versatile Applications
- Fruit Chips & Snacks: Strawberries, apples, bananas, mangoes, and kiwi slices.
- Meat & Jerky: Beef jerky, chicken strips, bacon, and fish strips.
- Vegetables & Herbs: Dehydrated onions, herbs, tea leaves, and mushrooms.
- Pet Treats: Homemade organic dehydrated pet snacks and meat bites.
