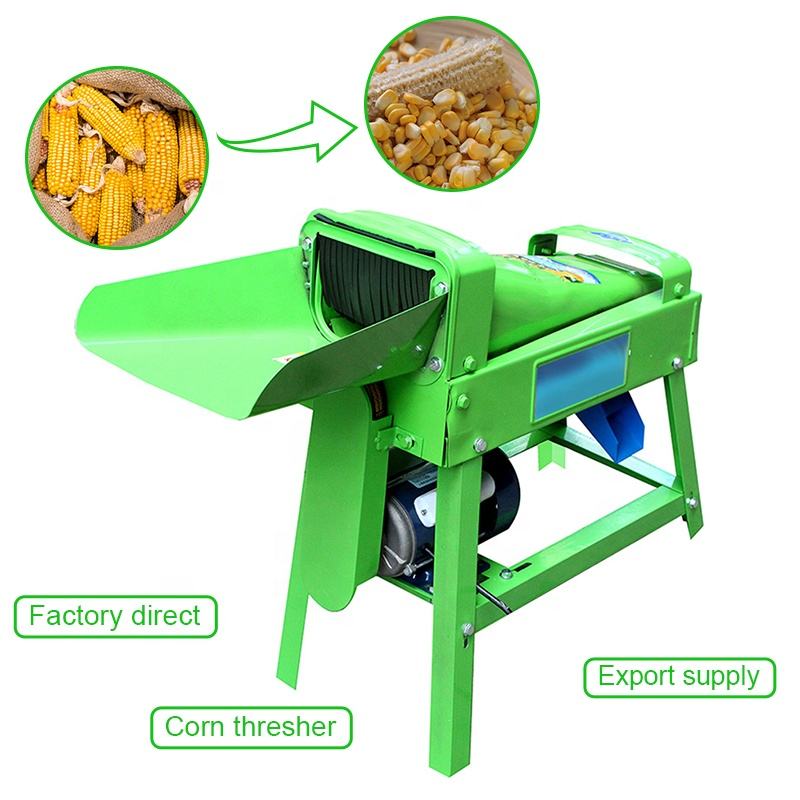

Corn thresher machine

Our farm corn thresher machine is reasonably designed. The front is equipped with wheels. It is easy to move. The rear frame of the sheller has no wheels, and the machine workbench is kept during operation

The com sheller with high mechanical efficiency safe, reliable, flexible performance characteristics of the operation Automatic threshing machinery saves labor and improves work efficiency

Feature of corn thresher machine

1. The spring automatic adjustment structure is adaptive to corn cobs of different sizes, and the threshing is clean.

2. High-power copper core motor continuously outputs surging power.

3. The safety shield design at the feed inlet is more humanized to prevent grain jumping.

technical parameter of corn thresher machine

Model	Big mouth outport	Double outport	Single outport
Feeding quantity	unlimited/time	2 corns/time	1 corn/time
Feeding mode	Shovel	manual	manual
work efficiency	3000kg/h	2000 kg/h	1000 kg/h
Depuration rate	99%	99%	99%
Motor voltage	220 V household	220 V household	220 V household
Motor voltage	electricity	electricity	electricity
Motor power	2200W	2200W	2200W
motor speed	2800 rpm	2800 rpm	2800 rpm
Pulley diameter	48 mm	48 mm	48mm
Motor operating temperature	70°C	70°C	70⁹C
Belt model	A530	A530	A510
Overall dimensions	8731 64cm	623064cm	5530 62cm
Package size	323075cm	302675cm	30* 26* 75cm
Shipping weight	23kg	21 kg	18kg
