Hot air circulation oven

CT-C series hot air circulation oven is equipped with low-noise high-temperature resistant axial flow fan and automatic temperature control system. The whole circulation system is completely closed, which improves the thermal efficiency of the oven from 3-7% of the traditional drying room to 35-45% at present, and the high thermal efficiency can reach 50%. The successful design of CT-C hot air circulation oven has made the hot air circulation oven in China reach the level at home and abroad. It saves a lot of energy for our country and improves the economic efficiency of enterprises. In 1990, the Pharmaceutical Administration issued the industry standard, the unified model is RXH.

Working principle of Hot air circulation oven

The air circulation system of hot air circulation oven adopts fan circulation air supply mode, and the air circulation is uniform.

The air source is driven by the circulating air supply motor (using the contactless switch) to drive the wind wheel through the heater, and then the hot air is sent out, through the air duct to the chamber of the oven, and then the used air is sucked into the air duct to become the air source for recycling and heating. Ensure room temperature Degree of uniformity. When the temperature value swings due to the door opening and closing action, the air supply circulation system quickly recovers to the operating state until the set temperature value is reached.

Feature of Hot air circulation oven

1. Most of the hot air circulates in the box, with high thermal efficiency and energy conservation.

2. With the function of forced ventilation, the box is equipped with an adjustable air distributor, so that the materials can be dried evenly. The heat sources can be steam, hot water, electricity, and far infrared.

3. The whole machine has low noise and balanced operation.

4. Automatic temperature control, easy installation and maintenance.

5. It can be used to dry all kinds of materials. It is a general drying equipment.

6. It is made of stainless steel and is not afraid of corrosion, aging and beautiful.

7. Stable performance, high work efficiency, less maintenance in the later period

8. Novices can also learn how to operate immediately. The temperature can be controlled at will. Get started quickly.

technical parameter of Hot air circulation oven

Industry standards	Model	Capacity (KG/each time)	Power (kw)	Steam consumption (kg/h)	Heat dissipation area（㎡）	Air volume(m³/h)	Matched baking tray	Overall dimension and face width × depth × high (mm)	Supporting drying car	Weight (kg)
RXH-14-B	CT-I	120	1.1	20	23	3450	48	2430x1200x2375	2	1220
RXH-27-B	CT-II	240	1.5	40	48	5230	96	2480x2200x2438	4	1530
RXH-41-B	CT-	360	2.2	60	72	9800	144	3430x2200x2620	6	2110
RXH-54-B	CT-IV	480	3	80	96	11800	192	4460x2200x2620	8	2300
RXH-5-C	CT-C-IA	25	0.45	5	5	3450	16	1130x1100x1750	0	800
RXH-7-C	CT-C-O	60	0.45	10	10	3450	24	1380x1200x2000	1	1000
RXH-14-C	CT-C-I	120	0.45	18	20	3450	48	2260x1200x2000	2	1580
RXH-27-C	CT-C-II	240	0.9	36	40	6900	96	2260x2200x2000	4	1800
RXH-27A-C	CT-C-IA	240	0.9	36	40	6900	96	4280x1200x2270	4	1880
RXH-41-C	CT-C-I	360	1.35	60	80	10350	144	2260x3200x2000	6	2100
RXH-41A-C	CT-C-皿A	360	1.35	60	80	10350	144	3240x2200x2000	6	2210
RXH-54-C	CT-C-IV	480	1.8	80	120	13800	192	4280x2200x2270	8	2800
RXH-25-A	The power of efficient high-temperature far infrared sterilization oven shall be matched according to the temperature requirements							1200x1000x1600	一	1200

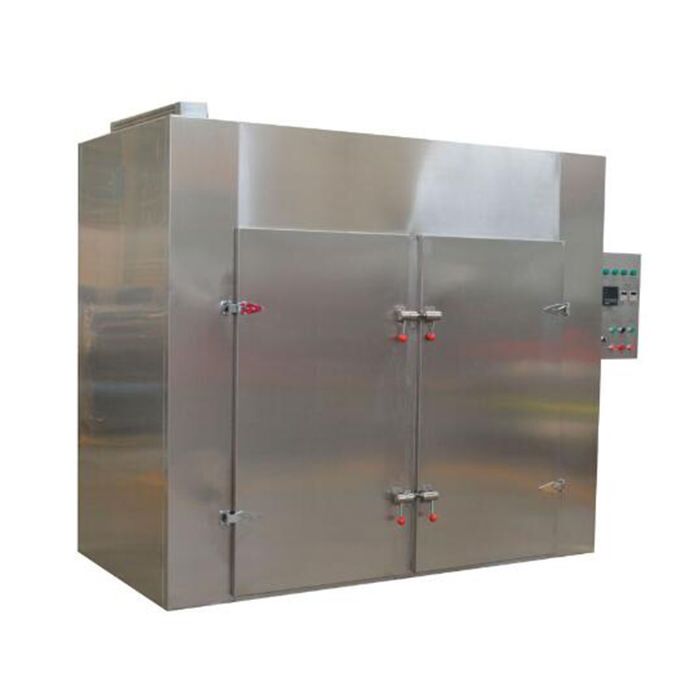

Photos of Hot air circulation oven
